Services
CONVERSIONS
DUE TO TAX IMPLICATIONS WE CAN NO LONGER OFFER CONVERSIONS OF ANY KIND INCLUDING POWER CONNECTIONS, UPGRADES, OR LED COLOR CHANGES.
-
PRODUCTS
FULL MOON
Our most powerful light
More light than needed for the longest cast
4 High intensity UV LEDs and 2 bright green LEDS
Green LEDs may be ON or OFF
Available in 15 or 0 degree phone jack or lighter cord.
Phone jack lights require 1/4" female phone jack connector(not included)
Customer selectable 15 or 0 degree for lighter cord model
-
pictures are not updated to latest revision
FULL MOON with phone jack
FULL MOON lighter cord - rear view
-

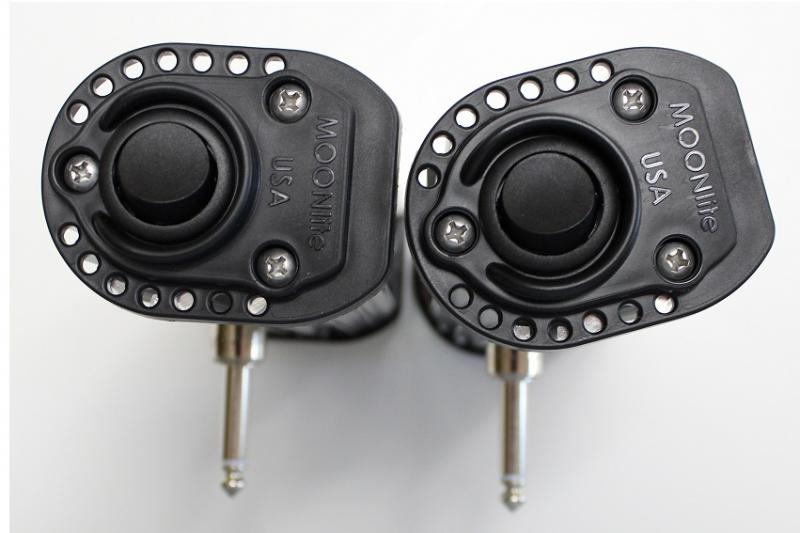

Side views showing jack angles
0 DEGREE 15 DEGREE
Boats with inward sloping mounting surface such as late model Tritons should use 0 degree lights if the female connector is mounted on the inward sloping surface. The angled mounting surface results in 0 degree light being tilted up similar to a 15 degree light.
15 degree lights on inward sloping mounting surface raises the light too far up and may cause glare.
For boats with level mounting surface, the 15 degree light is preferred but 0 degree light can be used.
Light shield will eliminate most glare on either version.
-
HALF MOON
2 UVs 1 Green
Green may be turned on or off.Available with 15 degree phone jack or lighter cord.

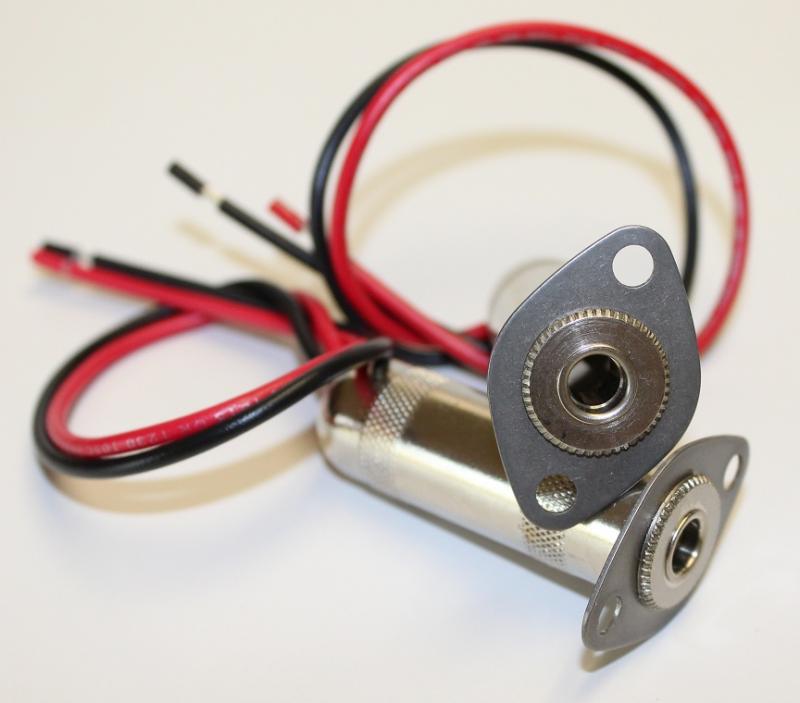

PHONE JACK FEMALE CONNECTOR
1/4" microphone/guitar connector.
Stainless mounting plate, heavy nickel plated electrical contacts, and 16 gauge tinned wiring provide excellent corrosion resistance. Open design cannot trap moisture. Compatible with all lights using 1/4" phone jack connectors.
Do NOT use hole plugs with MOONLITE female connectors. Most types of hole plugs do not keep water out but will prevent moisture evaporation.
SUCTION CUPS
Purchase replacement suction cups at your local dealer or online at McMASTER.COM
Part # 53535a22 for 1" diameter or 53535a25 for 1-3/8"
Nut size SAE 8x32
